Product Details

Technical Specifications

Product NameS-AG39
Battery Capacity600mAh
Support SystemWindows (7/8.1/10/11) 64bit
Android 8.0 above
iOS 13 above
Support ConsoleSwitch/OLED/Lite, Switch2, Smart TV
TriggerAnalog triggers
JoystickAnalog Stick
Paddles4-Macro back buttons
Controller size- Length: 150 mm / 5.9 inch
- Height: 100 mm / 4 inch
- Width: 60 mm / 2.4 inch
Controller weight200g / 0.44 lb
USB Cable0.8 m / 2.6 ft USB C to USB A

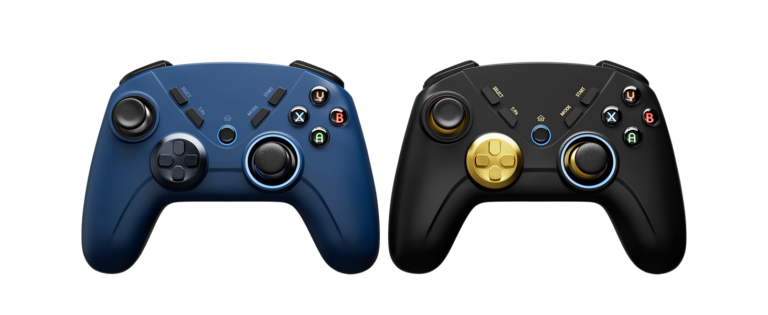

ColorBlack Gold
Midnight Blue

Connect Devices

Connection MethodsModeBT Name
PC Windows/MacOS - WirelessXXbox Wireless Controller
Android Phone/Smart TV/TV boxDS-AG39
Nintendo SwitchSPro Controller
iPhone/iPadVXbox Wireless Controller
PC Windows - WiredUsing USB-C cable

AG39 User Manual - EN/SP

View Now

Button backlight brightness Adjustment:
Press T/FN button, click left or right of D-pad to adjust Button backlight brightness level. It has
Four levels of brightness0 means turn off the light, press T/FN+ D-Pad right button to Enhanced in turn, 3 means the Brightest.

Vibration intensity Adjustment:
Press T/FN, click up or down of D-PAD button to adjust the Vibration intensity of the controller, 0 means turn off the vibration, press T/FN+ up key of D-Pad to Enhanced in turn, 3means the highest vibration intensity.

Press T/FN button, turn left with any of the stick to reduce the degree of stick movementrange to slow down the sensitivity in gaming.

Press T/FN, hit any analog to the right to increase the maximum movement range of thejoystick for one gear. The sensitivity of the two analogs is independent, with a total of 3 gears.The default is set to be the highest sensitivity.

Press T/Fn first, press any function button of the controller(A/B/X/Y/L1/R1/L2/R2) to start theTurbo function, PRESS T/Fn+same button to cancel it.

TURBO speed adjustment
3 levels speed adjustable : long press turbo, hold, pull down the right 3D analog stick to slowthe turbo speed down about 1 level, also one Home or Led light on. Long press turbo, hold,pull up right 3D analog stick to speed up to raise the speed . Factory default is level 2.

Level 1: Turbo speed is 5 times per sec, 1 led light on

Level 2: continue speed is 12 times per sec ,2 led lights on by factory default speed

Level 3: continue speed is20 times per sec, 3 led lights on

Setting:
While holding down the T/FN key, press any one of M1/M2/M3/M4 to activate the key mapping function (e.g., T/FN + M1). Then input the key/key combination you want to map.
The R-stick will turn red at this point. Once you’ve finished setting it up, press M1 to complete the setup. The R-stick will then turn blue again.

Supported keys for mapping are: A, B, X, Y, R3, L3, R1, R2, L1, L2, and the four directional pads (D-pad).

Clear Setting:
While holding down T/FN, press M1/M2/M3/M4. When the R-stick turns red, press M1/M2/M3/M4 again to clear the mapping. When the R-stick turns blue, the clearing is complete.

Switching/replacing connected devices in three easy steps
1. Turn off the controller.
2. Set the desired mode on the controller.
3. Press and hold the Home button until the light starts fast flashing. This indicates that the controller has entered pairing mode.

Home button slow blink:
Press the home button, the indicator light blinks slowly, indicating that the controller is looking for a device that has completed the connection

Home button fast blink:
Press and hold the home button until the light blinks rapidly, this indicates that the controller is in pairing mode, at this point you can connect a new device

Turn the controller on with any mode, the home button indicator lights turn on for 2 secondsto indicate power capacity.

Battery lndicator: 4 LED mean 76-100%, 3 LED mean 51%-75%, 2 LED mean 26%-50%, and 1LED means 0-25%. The gamepad battery last for 7-10 hours.

No, you cannot switch the connection mode on the back while the controller is working, as this will cause the controller to lose connection. You need to turn off the controller before performing the connection switching steps.

How do I connect a Nintendo Switch 2?

Same steps as connecting a Nintendo Switch

  1. Open the Switch settings and select Change Grips/Sequence.
  2. Add controller
  3. Switch the mode selector on the back of the controller to S model.
  4. Press and hold the Home button on the controller for more than 5 seconds, until the Home button’s LED flashes rapidly.
  5. The controller will automatically pair with the Switch 2.

Quick Connection Tutorial

Device Function Description

AppleAndroidSteamSwitchX-inputD-input
VibrationYESNOYESYESYESNO
TurboYESYESYESYESYESYES
TriggerYESYESYESNOYESNO
